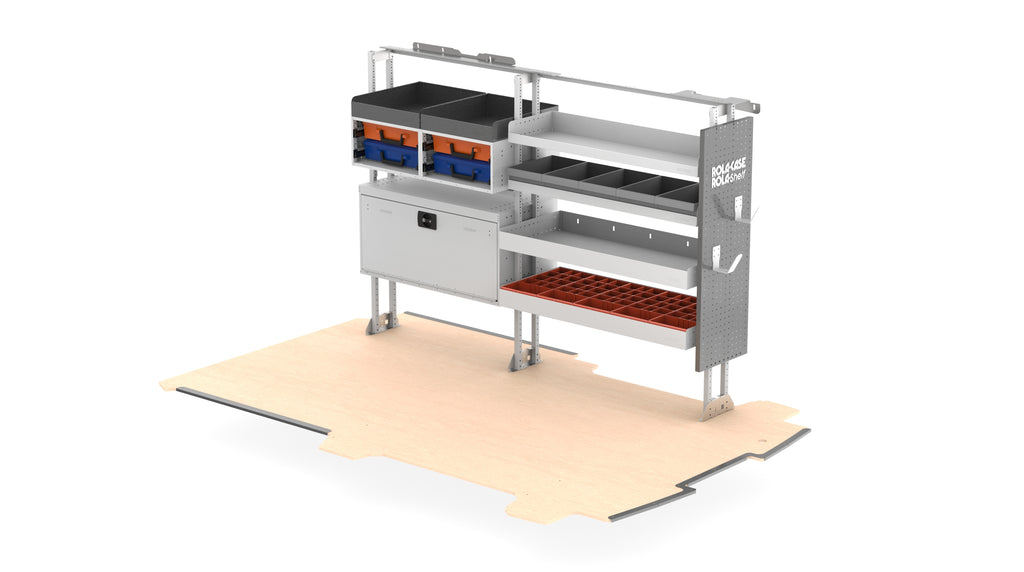

Drivers Side HVAC Van Kit – Standard Roof

Roof Anchor
1 × RSVAKIT(VEHICLECODE) – Roof Anchor

Driver’s Side – Bay 1 (Front of Vehicle)
1 × RSSFR/HD/80/1539 – Heavy Duty Start Frame
2 × RCSK1/C – Cabinet Kits
2 × RCC/TT/40 – Top Trays
1 × RSBAR/80/2 – Twin Pack Cabinet Support Bar
1 × RSLBX/82 – 8 Series Lockable Box
Note: On 5-door vans, Bay 1 may be oriented outward through the sliding door where suitable. If a barrier restricts this configuration, the front cabinet may alternatively face outward.

Driver’s Side – Bay 2 (Over Wheel Arch)
1 × RSEFR/HD/100/1539 – Heavy Duty Extension Frame
2 × RSSHL/105/1 – 305 mm Deep Shelves
2 × RSSHL/109/1 – 420 mm Deep Shelves
5 × RP200 – Medium Grey Plastic Bins
5 × RP428 – Medium Orange Plastic Bins
1 × RSPEP/UNV – Universal End Panel
1 × RSPEP/HK/2 – 2 Pack End Panel Hooks

Included if No Flooring is Selected
1 × RSTFJSW(VEHICLECODE) – Jigsaw Floor Template
For vehicles with bare-metal floors (no existing flooring).
1 × RSTFCBT(VEHICLECODE) – Cardboard Floor Template
For vehicles with existing hardwood flooring; assists with accurate installation and fitment.
